Weatherometer with Air Cooling System, 80 Liters, 175 Liters, 225 Liters

Weatherometer test is important to bring out the defects in something and to ensure its durability. The weatherometer result will make us identify those areas which need immediate improvements. But, there are areas where basic testing is not enough and does not do the job perfectly. To meet the high quality requirement, there is a need to perform extensive weatherometer testing on some materials. A place where such kind of testing is conducted is the xenon weatherometer.

Different kind of environment is required for different type of testing. The weather-ometer provide a controllable xenon aging environment test. So, the accelerated aging test level in these xenon test chambers can be changed as per the requirement. Weatherometer is easy to install (proper ventilation required), easy to use and easy to maintain. Specimen mounting and evaluations are fast and easy with easily removed specimen holders. It is completely automated and can operate continuously. The top features of these weatherometer are as follows :

●	Innovative designs and easy to install. There has a patent for this weatherometer design from WEWON. Xenon weatherometer can be the most realistic simulated solar spectrum, including ultraviolet, Visible and infrared. Equipment Photos 1｜ Equipment Photos 2｜ Equipment Photos 3
●	Weatherometer is very simple and user friendly interface. There has a fully process which help customer doing xenon lamp aging test.
●	Built-in connection for data logging. There has a remote control additional service by customer request via Ethernet port. System support RS-232, RS-485 as well.
●	Easy to interpret self-diagnostic warnings and service reminders for this design weatherometer.
●	The xenon weatherometer with fast and real simple calibration. Any calibration request can be negotiated. To determine the color fastness and aging to sunlight, weather resistance, etc.

Equipment Model	WEW-080-XD	WEW-175-XD	WEW-225-XD
Testing Volume	80 Litres	175 Litres	225 Litres
Internal Dimension (D×W×H mm)	500*400*400	700*500*500	900*500*500
Exterior Size (W×H×D)	700*1950*1100	900*2050*1200	1150*2050*1200
Gross Weight (Kgs)	125 Kgs	225 Kgs	355 Kgs
Power Supply	4.0 KW Weatherometer	5.5 KW	8.5 KW
Cooling System	Air Cooling	Water Cooling	Air Cooling
Temperature Range	RT+10℃~65℃	RT+10℃~80℃	RT+10℃~85℃
Humidity Range (brightness)	20%~70％R.H	20%~72％R.H	10%~78％R.H
Humidity Range (darkness)	20%~95％R.H	20%~95％R.H	10%~98％R.H
Spraying Time	1~9999 hours,	59 minutes	Adjustable
Spraying Period	1~240 minutes,	Interval (cut-off)	Interval (cut-off)
Spectral Wavelength	290nm~800nm	290nm~800nm	300nm~800nm
Light Irradiance Deviation	±0.01 W/m2	±0.01 W/m2	±0.01 W/m2
Irradiance	150~1500W/m2	150~1500W/m2	250~1500W/m2
Accuracy Range	Setting/direction accuracy:	Temperature ±0.1℃,	Humidity ±1％R.H
Sensor Type	Platinum resistance:	PT100Ω/MV	PT100Ω/MV
Heating System	Independent system,	Nichrome electrical heater
Humidification System	External insulation,	Stainless steel surface	Evaporative humidifier
Black Panel Temperature	+40℃~+100℃	+40℃~+100℃	+40℃~+110℃
Water Supply System	Self-filtrator, auto control	Humidification, water supply,	Lamp cooling circulating water
Temperature Controller	Adopt Weinview color	Touch screen and Siemens	PLC modules controller
Recycle System	Temperature resistance	Low noice, air-condition motor,	Multi-vane centrifugal impeller.
Exterior Material	Carbon steel panel with	Phosphide static spraying	Plastics processing
Interior Material	SUS304 #	SUS304 #	SUS304 #
Door Frame Thermal Insulation	Anti-heating, Anti-aging	Silicon gel sealing strip
Safety Protection	Electric leakage, short circuit,	Water shortage, motor overheating,	Over-current protection.
Power Input	AC 220V, 230V	50/60Hz	AC380V±10％

Weatherometer is specially designed for conducting various laboratory and research experiments. Xenon weather-ometer are important for carrying out different quality control tests on various types of materials such as cement, various electrical fittings, motors, electronic circuits and components etc. The most unique thing about these xenon test chamber that makes their quality testing different from the usual ones is their arc lamp accelerated conditions. The weatherometer can simulate damage from full-spectrum sunlight, heat and humidity.

	Test Method of ISO 4892-2 & DIN EN ISO 4892-2｜Weathering Effects on Plastic Materials	ISO 4892-2:2013 Plastics – Methods of Exposure to Laboratory Light Sources Part 2: Xenon-Arc Lamps
	DIN EN ISO 4892-2 Xenon Arc Test Chamber｜ISO 4892-2 – Xenon Arc Weatherometer Testing	ISO 4892-2 Xenon Weather Ometer｜Xenon Arc Chamber – Weathering According to DIN EN ISO 4892-2
	DIN EN ISO 4892-2 Xenon Test Chamber｜ISO 4892-2 Xenon Arc Test | UV Weathering Test	DIN EN ISO 4892-2 Xenon Arc Testing｜ISO 4892-2 Accelerated Weathering｜Xenon Test Chamber

Question:

Does your xenon arc weatherometer 100% comply with SAE J2527 test standard ?

Answers:

Yes, Our air cooling model xenon arc weatherometer convenient for SAE J2527 test standard. Please check below articles, The Q-SUN Xe-3 model has explained the SAE J2527 with details. This should be the easier way to make you understand how to prepare the test work according to the SAE J2527 testing standard. https://www.q-lab.com/faq/products/q-sun-xenon-arc-test-chambers?faqID=120 https://www.q-lab.com/products/q-sun-xenon-arc-test-chambers/q-sun-xe-3

Question:	How will you provide service during guarantee, do you have service engineer based at Mumbai or India
Answers:	When our engineer is busy and can not move to your factory, We can find an engineer in your local place and invite the engineer visit your factory for the maintenance and service work for us. We will pay the engineer service cost by our side.

Question:

What will guarantee period for this xenon weatherometer ?

Answers:

The first year, We will support to customer free of charge ! In case there any quality problem and spare parts damaged, We will send to customer by DHL free of charge and teach the customer how to do the replace work. The second year, In case there any parts damaged, We will charge the spare parts cost and delivery to customer address. No other additional cost. The third year, We may charge the spare parts cost and a part of our labor cost in case the cost there. This is our normal and traditional ways !

Question:	What about spare parts service pack consumables ?
Answers:	We will provide the daily consumables parts to customer for a safe stock. For example, the wet bulb gauze, water pipes, and water valves. Sometimes we supply the safe stock parts for customer depends on customer local test conditions.

Question:	In case there any quality problem happen, How will you provide assistance for trouble shooting ?
Answers:	Before shipment, We will submit the trouble shooting drawing to customer. Meanwhile, When our engineer visited the customer factory, We can training your workers which will operate this xenon weatherometer. We have the service engineer who can do the support online. Here is a guidance for your easier understand our support and service → Techical Support

Question:	Xenon weatherometer is water cooled or air cooled design ?
Answers:	This xenon arc weatherometer is air cooled design. Meanwhile, We have one xenon test chamber which is a water cooled design. If you are trying to know more about the water cooling type xenon test chamber, Please check this web page → Xenon Test Chamber

Question:	What will be installation charges ? How will conduct training to our technicians for use of weatherometer ?
Answers:	The installation charge is free. Our engineer will visit your factory for a installation work by our engineers. Normally, When the xenon arc weatherometer has been arrived at your factory address, Our service engineer will prepare the visit schedule to your factory address directly. The training service is free. Our engineer will come and visit your factory for training course there.

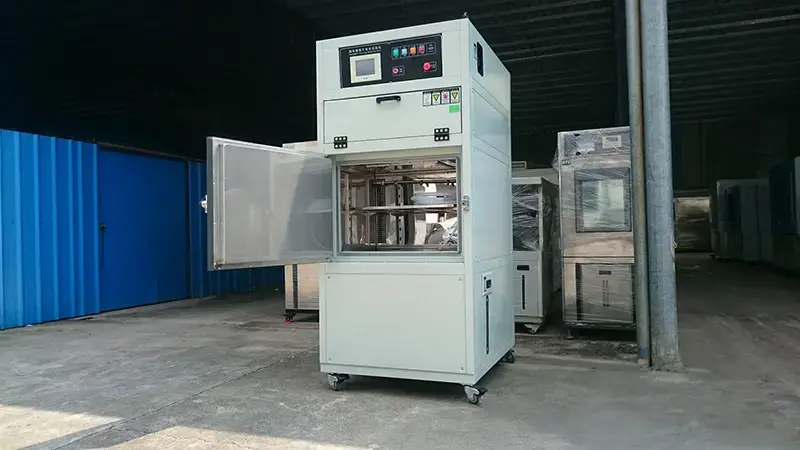

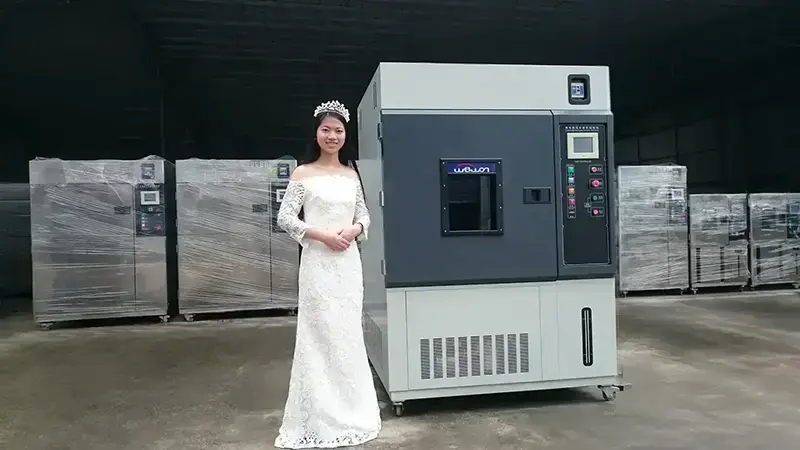

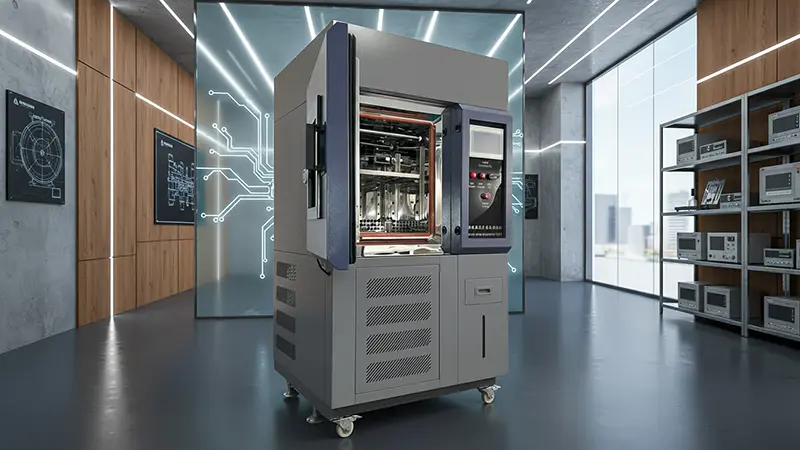

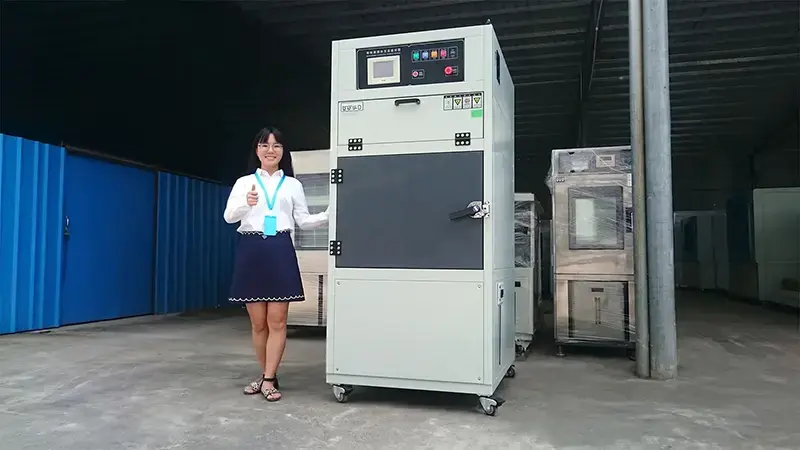

	Catalog Photos, POP Photos of Weather ometer
	Technical Specificatioin of Weather ometer
	Technical Parameters of Weather ometer
	WEW-080-XD/ WEW-175-XD / WEW-225-XD Weather ometer Technical Specification There, This is an Excel file format and popular used when quoted to a potential customer.
	Technical drawing (body structure design) for the WEW-175-XD-SUNEYES
	Company Product Line of Weather ometer
	Circuit diagram for the WEW-175-XD-SUNEYES Xenon Weather Ometer
